Polishing - Surface Treatment Techniques for Ceramic Substrates Before Printing

As the integrated circuit and semiconductor industries continue to grow rapidly, ceramic substrates with high surface precision and low roughness have become the preferred choice for packaging substrates. Among the production steps, the polishing process is critical to ensuring the overall quality of ceramic substrates.

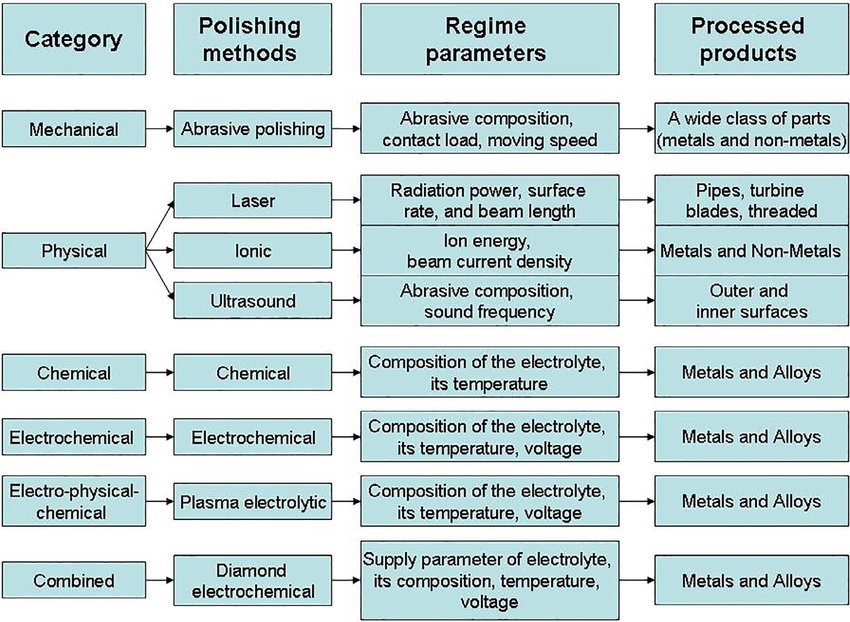

Polishing Techniques Overview

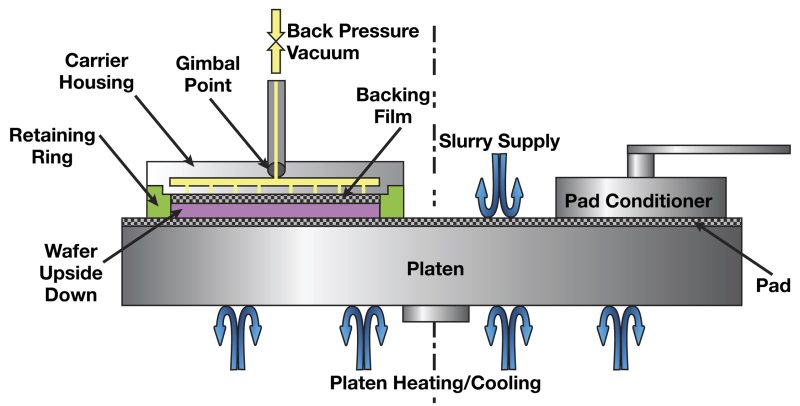

1. Chemical Mechanical Polishing (CMP)
CMP combines chemical corrosion with mechanical removal, achieving nanometer-level precision and sub-nanometer roughness. It uses a synergistic process involving polishing slurry and pads to remove material efficiently while minimizing subsurface damage. CMP is a mainstream method for achieving global planarization on ceramic substrates.

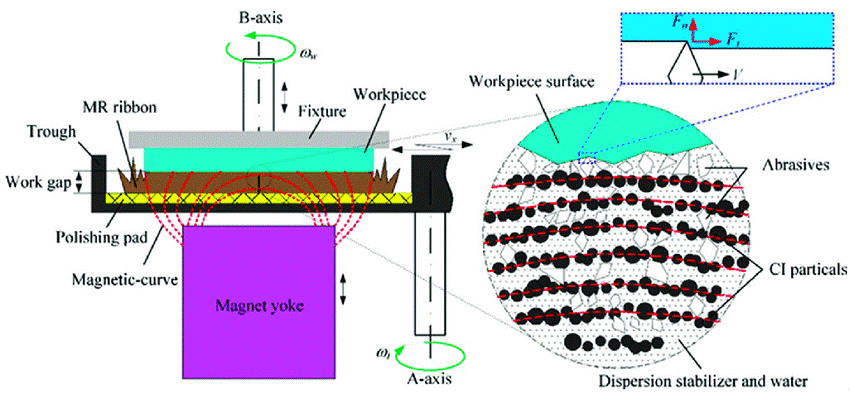

2. Magnetorheological Polishing (MRF)
MRF utilizes a magnetic field to control abrasive particles suspended in a fluid. It delivers high precision and low surface roughness, making it ideal for precision optics and small-diameter components.

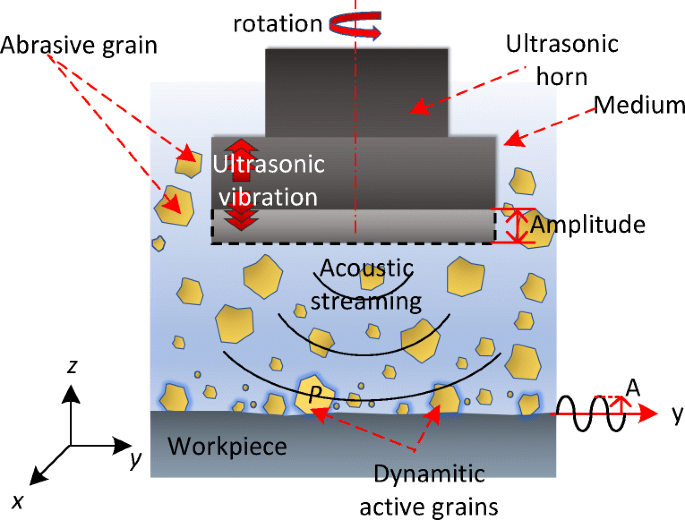

3. Ultrasonic Vibration-Assisted Abrasive Flow Polishing (UVAFP)
By combining ultrasonic vibrations with abrasive flow, this method enhances surface polishing. The ultrasonic system generates micro-bubbles that collapse and aid material removal, making UVAFP particularly suited for high-precision optical components.

4. Electrophoretic Polishing
Electrophoretic polishing employs charged particles in an electric field to create a flexible abrasive layer. The technique is highly effective for ultra-precision machining of functional ceramics without introducing mechanical damage.

5. Electrolytic Polishing
Electrolytic polishing smooths surfaces by dissolving material through selective anodic reactions. It reduces surface roughness efficiently and enhances corrosion resistance, especially for areas inaccessible by mechanical polishing.

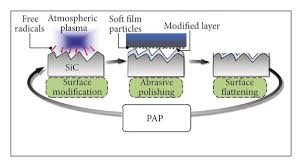

6. Plasma-Assisted Polishing (PAP)
PAP integrates chemical modification and mechanical removal, achieving atomic-level flatness with minimal subsurface damage. This technique excels in processing hard-to-machine ceramics like SiC and AlN.

Ceramic substrates are foundational materials in integrated circuits and copper-clad boards. Their surface quality directly impacts the performance and reliability of downstream devices. As miniaturization and integration demands grow, stricter requirements for surface treatment will emerge, driving advancements in polishing techniques. Selecting the appropriate polishing method-or a combination thereof-based on the substrate's material and requirements will remain crucial.
