Roller hearth kilns are continuous thermal processing systems designed for products that require rigid support, stable transport, high processing temperatures, or a cleaner furnace environment. Unlike mesh belt furnaces, products travel directly on rotating ceramic, silicon carbide, alloy, or other application-specific rollers.

They are commonly selected for large or heavy loads, multi-row sagger production, contamination-sensitive materials, and large flat products that require stable transport through the furnace. XMZ Technologies reviews the material, loading arrangement, thermal profile, process atmosphere, and production target before recommending a roller hearth kiln or another furnace configuration.

When to Choose a Roller Hearth Kiln vs. a Belt Furnace

Mesh belt furnaces are generally the more economical continuous furnace solution. For comparable process capacity and furnace size, a roller hearth kiln typically requires a higher capital investment because of its driven roller system, atmosphere-control requirements, and mechanical complexity. A roller hearth kiln becomes the preferred choice when process demands justify the additional investment.

Higher-Temperature Processing

Many standard mesh belt furnaces use heat-resistant metallic belts and furnace components selected for processes around 1,100-1,200°C or below. The practical limit depends on belt alloy, load, atmosphere, required service life, and furnace design. As operating temperature rises, both the belt and the surrounding system become more costly and difficult to maintain.

For many high-temperature ceramic and advanced-material applications, roller transport becomes the more practical solution. Selected roller hearth kiln designs available through XMZ Technologies can operate at temperatures up to approximately 1,750°C, depending on the process configuration.

Large or Heavy Loads

The first consideration for a mesh belt furnace is whether the load per unit area is within the practical capacity of the belt. As production capacity increases, the total moving load on the conveyor system becomes equally important.

Roller hearth kilns distribute the load across multiple driven rollers rather than a continuously tensioned mesh belt, making them well suited for heavy saggers, trays, and other high-load applications.

This is particularly relevant in lithium battery material production, where high throughput, heavy loading, long production lines, wide furnace sections, and multi-row or multi-level sagger loading are common. Representative systems may exceed 50 m in total length or 3 m in usable width.

Cleaner Furnace Environment

Products are transported directly on rollers rather than on a metallic mesh belt. Eliminating belt-to-support friction reduces metal particles generated by belt wear inside the furnace, which is beneficial for electronic ceramics and other contamination-sensitive products.

More Stable Product Transport

In very long or wide belt furnaces, belt movement can become less consistent, increasing the risk of product creep or lateral shifting. A roller hearth provides a flatter and more consistent support surface. Uniform roller diameters, accurate leveling, synchronized drives, and even contact help reduce product movement during long-distance transport.

CdTe glass substrates are a typical example. For products around 300 × 300 mm, a belt furnace often remains the more economical solution. As substrate size increases, roller transport provides better support and more stable movement. XMZ has experience handling solar substrates up to 2 × 2 m.

Better Loaded Temperature Uniformity

Without a circulating mesh belt and its support structure inside the hot zone, a roller hearth kiln can use a simpler internal layout. Heating distribution can therefore be optimized around the actual product arrangement and thermal mass to improve loaded temperature uniformity.

Improved Resistance to Corrosive Processes

Some thermal processes generate corrosive vapors that shorten the service life of metallic belts and other furnace components. LFP calcination is one example because phosphorus-containing vapors can be highly corrosive. The refractory-based construction of a roller hearth kiln is often better suited to these conditions and may provide longer component life.

Typical Roller Hearth Kiln Applications

Electronic Ceramics

Continuous firing and sintering of electronic ceramics, especially where a clean furnace environment, stable transport, or higher processing temperature is required.

MLCC (multilayer ceramic capacitors)
LTCC
Ferrites
Thermistors
Piezoelectric ceramics
SOFC components
Other advanced electronic ceramics

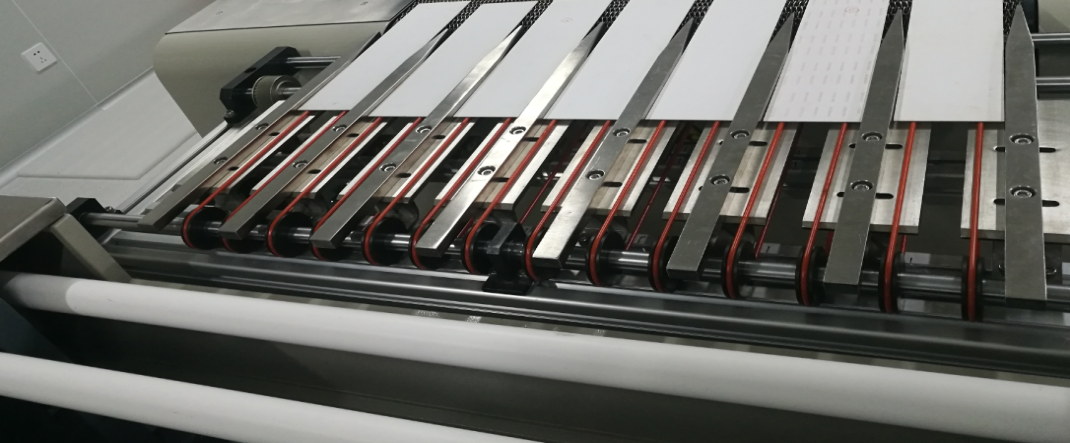

Electronic ceramic firing in a roller hearth kiln.

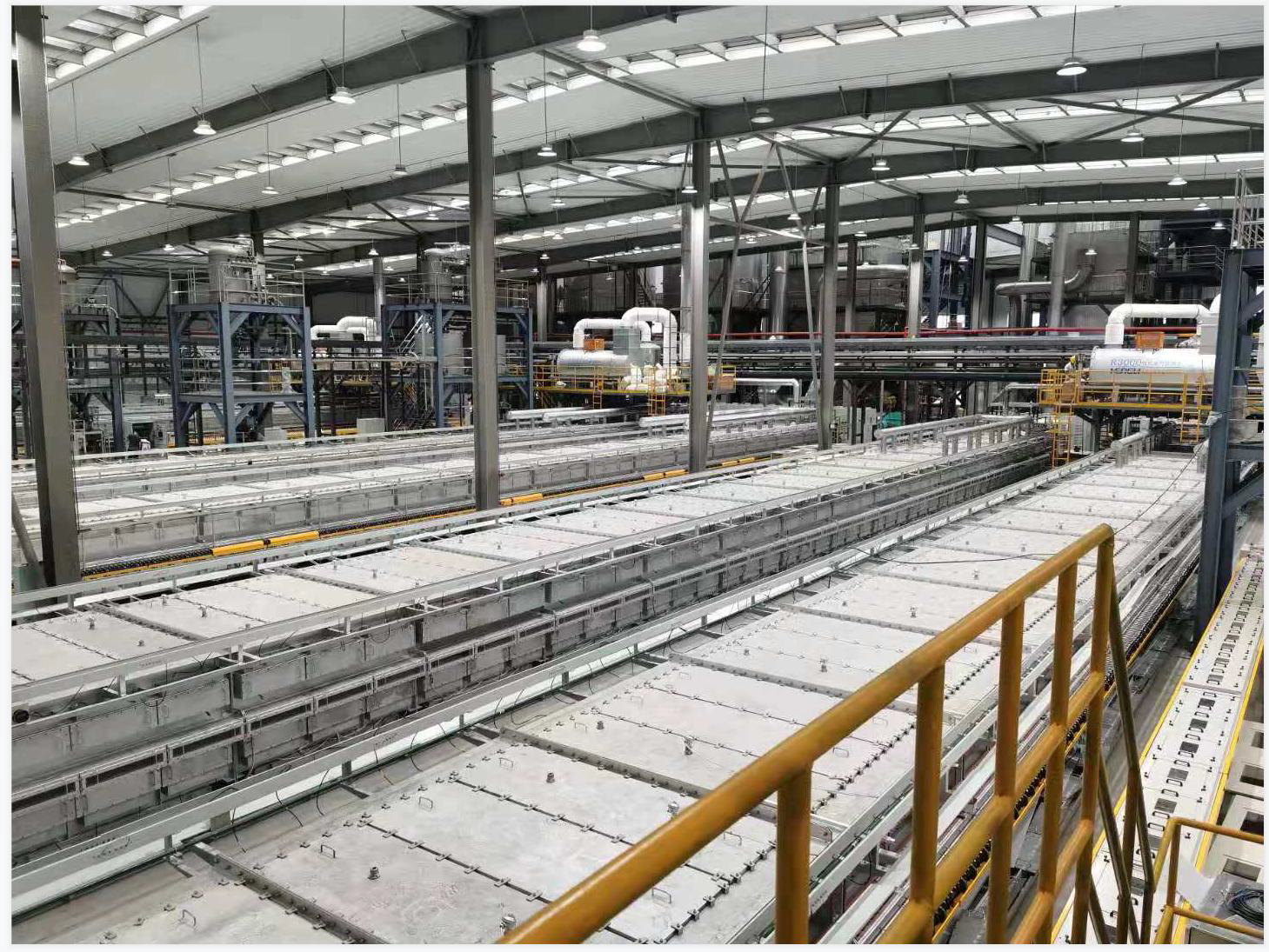

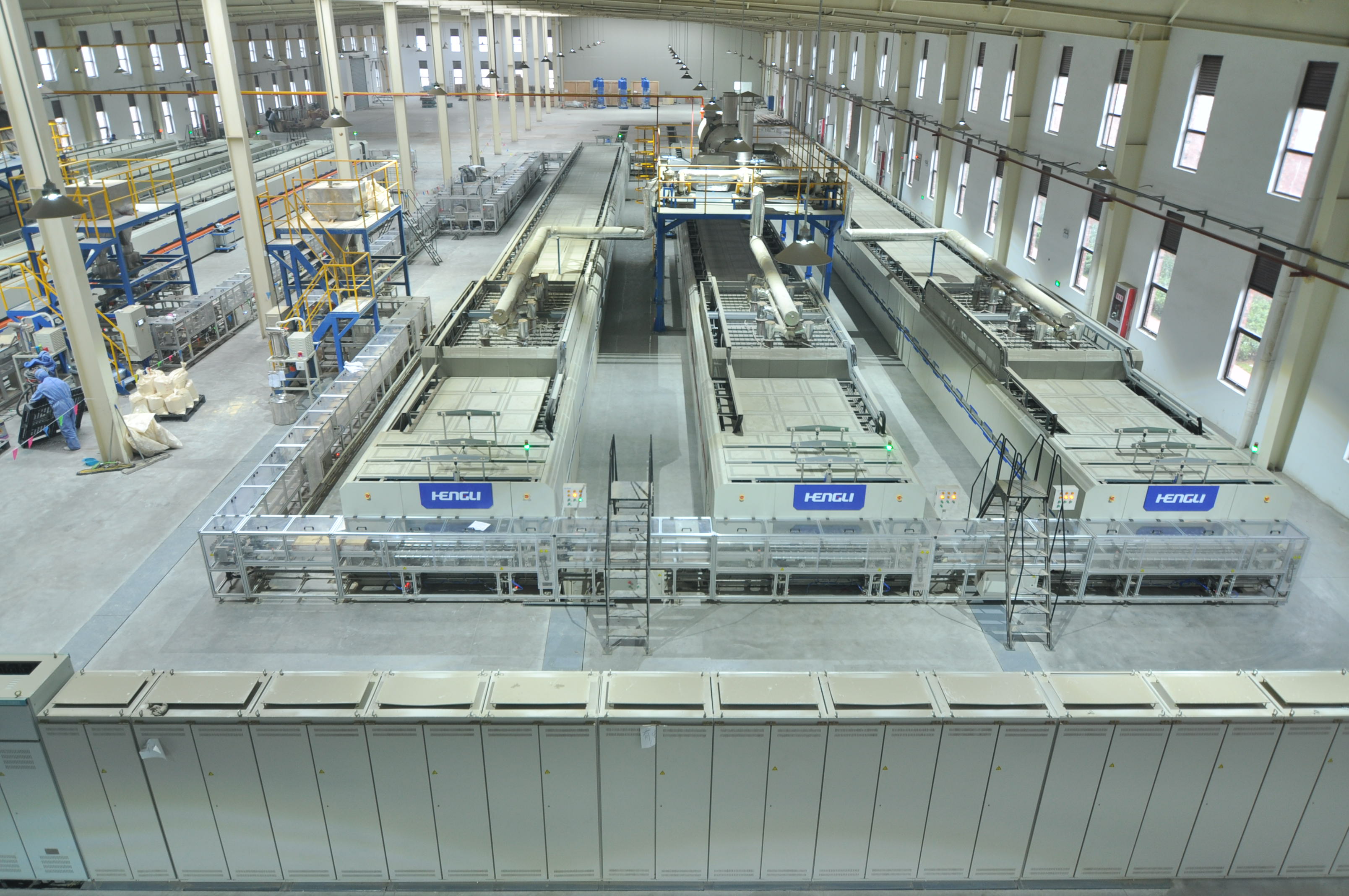

Long roller hearth kiln production line for LFP cathode material calcination — High-volume roller hearth kiln line for battery material calcination.

Battery Materials

Roller hearth kilns are commonly used for high-volume calcination of battery materials. They are particularly suitable for long production lines with multi-row or multi-level sagger loading and for corrosive processes such as LFP calcination.

Lithium-ion battery cathode materials: LFP, LMFP, NMC, and NCA
Anode materials: graphite, silicon, and hard carbon
Sodium-ion battery materials
Solid-state battery materials

Glass and Thin-Film Products

Continuous thermal processing of large-format glass substrates for thin-film photovoltaic and electronic applications.

CdTe solar modules
Perovskite solar cells
Large glass substrates

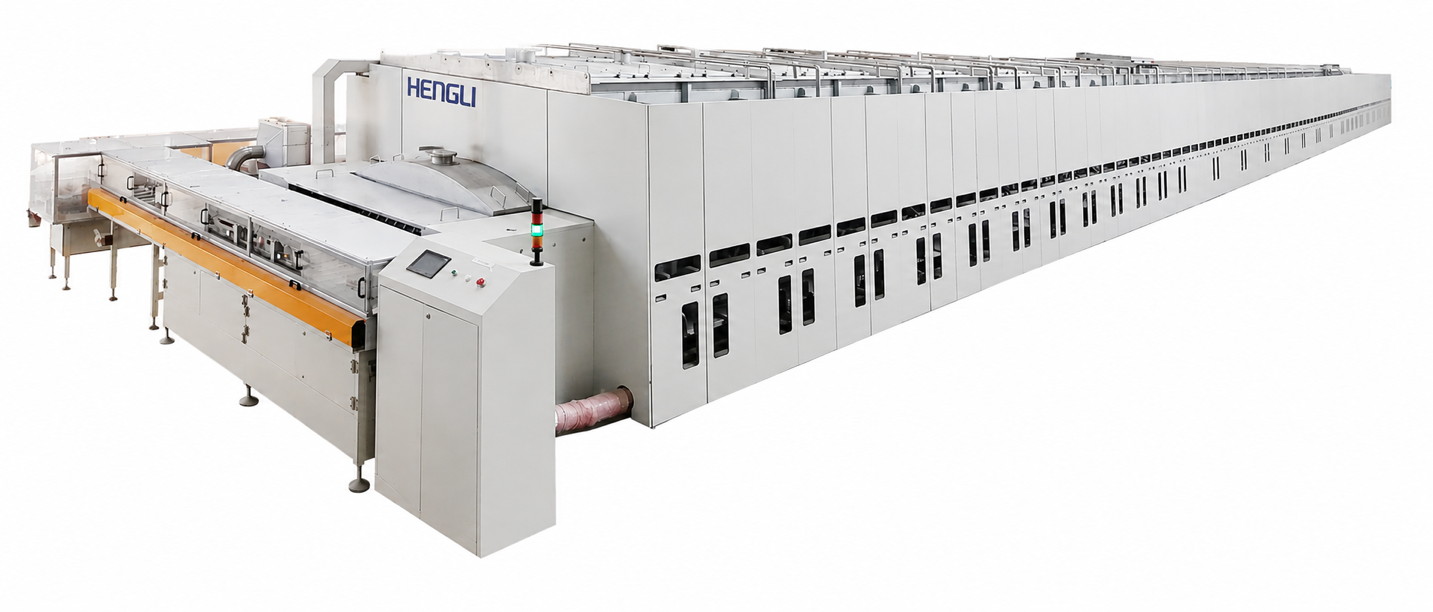

Industrial roller hearth kiln for large glass and thin-film product processing — Roller hearth kiln system for large-format glass and thin-film product processing.

Engineering Capabilities

High-Temperature Processing and Uniformity

Roller hearth kiln designs are available for operating temperatures up to approximately 1,750°C. Representative loaded temperature-uniformity targets in the dwell zone may include:

±1-2°CSelected electronic ceramic processes
±3°CSix-row, single-level battery material loading
±5°CSix-row, double-level battery material loading

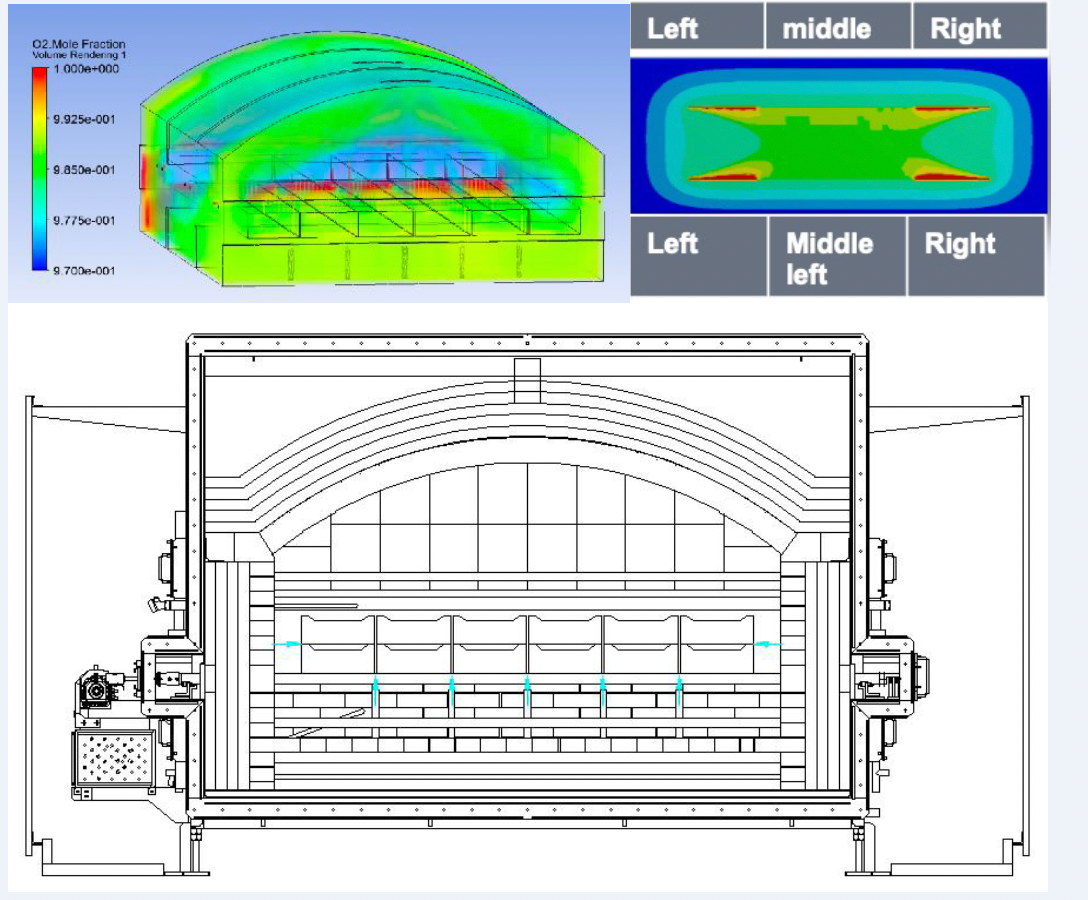

Temperature distribution simulation and kiln cross-section for a roller hearth kiln — Temperature-distribution analysis for the loaded furnace cross-section.

Controlled Process Atmospheres

Available process atmospheres include air, nitrogen, nitrogen/hydrogen mixtures, water vapor, and other controlled gas environments. Oxygen levels below 1 ppm can be achieved.

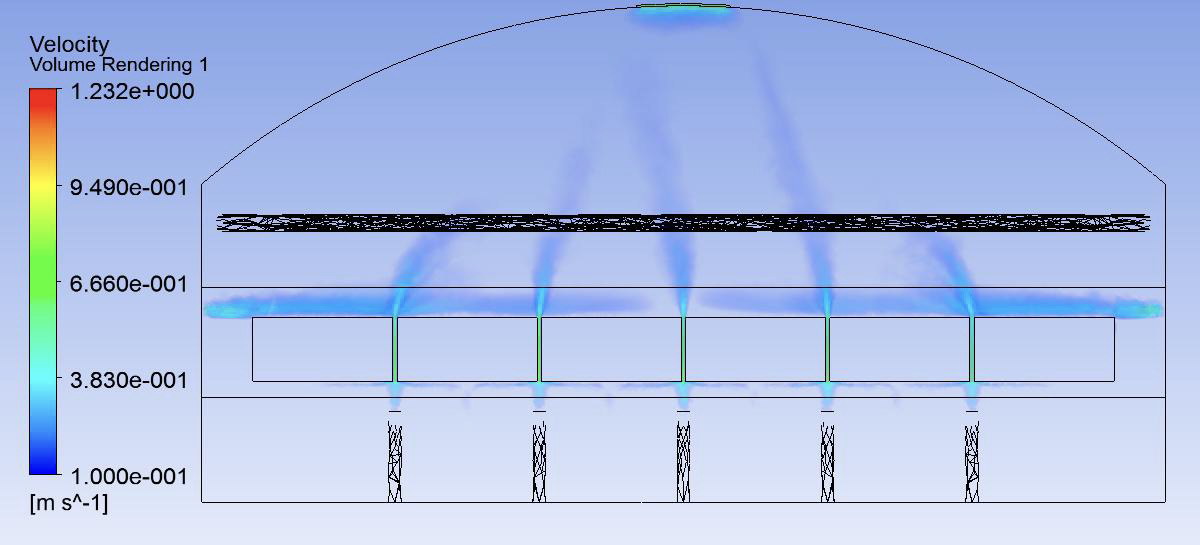

CFD simulation of atmosphere gas flow inside a roller hearth kiln — CFD analysis can be used to optimize gas inlet, exhaust, and atmosphere flow.

Transport Accuracy

Roller alignment, roller diameter control, and synchronized drives are used to maintain stable product movement over long furnace lengths.

Representative project results include:

Lateral displacement within ±3 mm for large glass products transported through a furnace section under 15 m
On a heavily loaded 70 m LFP production line, lateral movement below 30 mm and forward/backward displacement below 60 mm

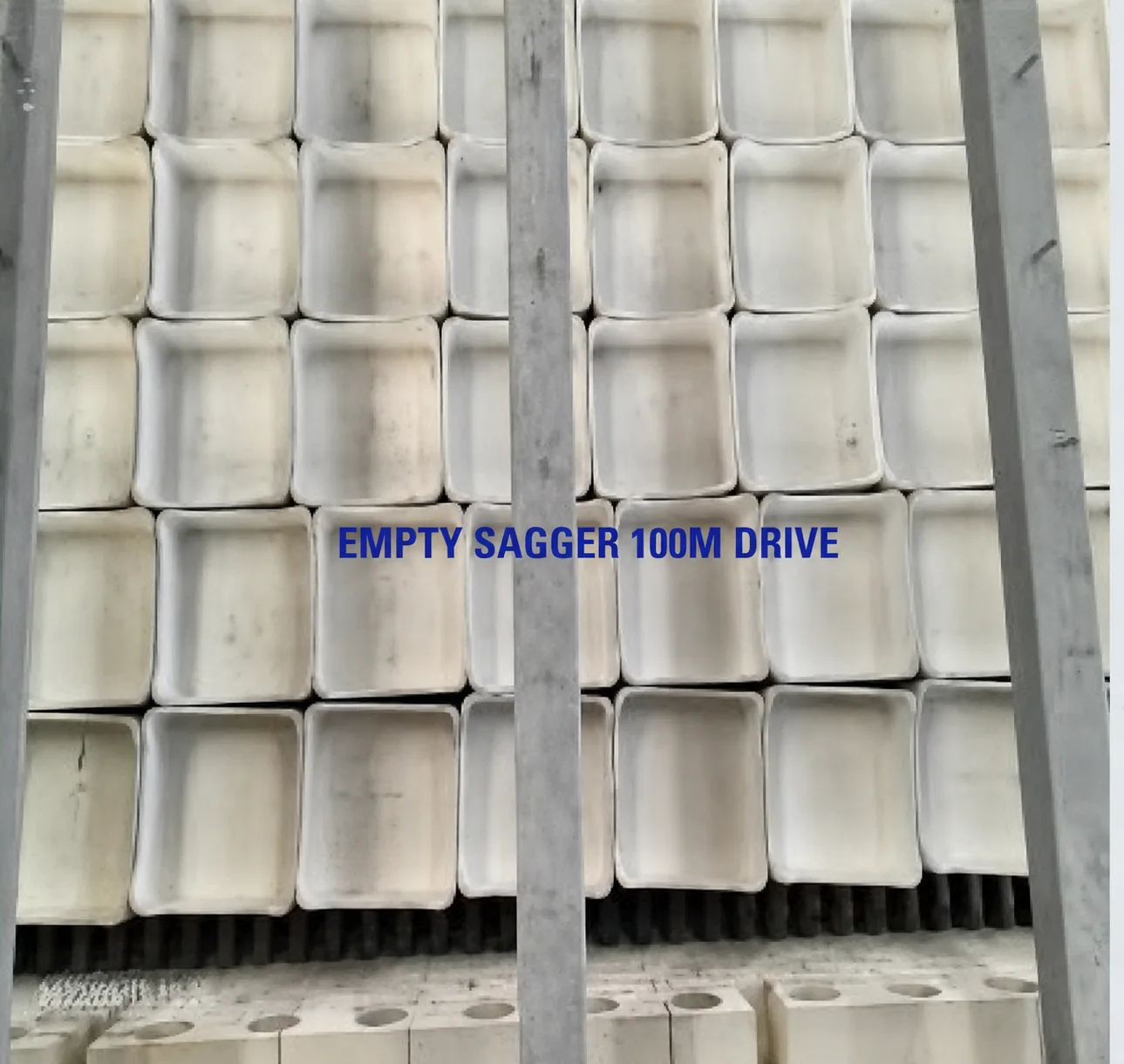

One-hundred-meter empty sagger transport test using synchronized roller drives — 100-meter empty-sagger transport test using synchronized roller drives.

Synchronized roller drive components for accurate roller hearth kiln transport — Synchronized roller-drive components for precise transport control.

Key Roller Hearth Kiln Design Features

Modular Furnace Configuration

Heating, cooling, and atmosphere-control sections are sized to the required thermal profile. The length of each zone is adjusted for the target temperature profile, process time, and production capacity.

Atmosphere and Pressure Control

The kiln atmosphere can be controlled by process zone to match different stages of the firing profile. For example, in an MLCC firing process the front section may operate at a higher oxygen level, followed by lower oxygen levels in the later zones.

Closed-loop gas control, chamber-pressure regulation, and recipe-based atmosphere settings support repeatable operation. Gas inlets and exhaust locations are arranged to promote consistent flow and reduce stagnant areas.

Process Monitoring and HMI

The PLC and HMI can provide recipe control, operating history, alarm records, temperature trends, atmosphere data, and process information required for production tracking.

Precision Roller Transport

Roller material, diameter consistency, leveling, spacing, and drive synchronization are selected for the intended product, load, furnace length, and operating temperature.

Heating Design and Temperature Uniformity

Heating method and heater placement are selected for the material and firing process. The furnace is designed around the actual product arrangement and thermal mass rather than applying one standard heating layout to every application.

Clean Furnace Construction

A durable inner lining can reduce powder shedding. Process-compatible coatings may protect heating elements and other internal components from scaling, peeling, or reaction with process vapors.

Energy Efficiency and Heat Recovery

The insulation system is designed to reduce heat loss and heating power.

The furnace can recover heat from areas where energy would escape and use it to preheat incoming process gas and improve overall energy efficiency.

Discuss Your Thermal Process

Not every continuous thermal process requires a roller hearth kiln. In many cases, a mesh belt furnace remains the simpler and more economical choice. XMZ Technologies can review your material, loading arrangement, thermal profile, atmosphere, throughput target, and facility constraints to identify the most suitable furnace architecture for a new line or replacement project.
