MLCC Manufacturing: Understanding the Dynamic Sintering Process

Multilayer ceramic capacitors (MLCCs) have become indispensable components in today's electronic devices, with applications ranging from personal computers and smartphones to automotive navigation systems. As the demand for smaller, higher-capacity, and cost-effective MLCCs continues to grow, the manufacturing technology behind these crucial components is evolving. Central to this evolution are the furnaces and kilns used in MLCC production, which play a pivotal role in ensuring the quality, reliability, and performance of these electronic components.

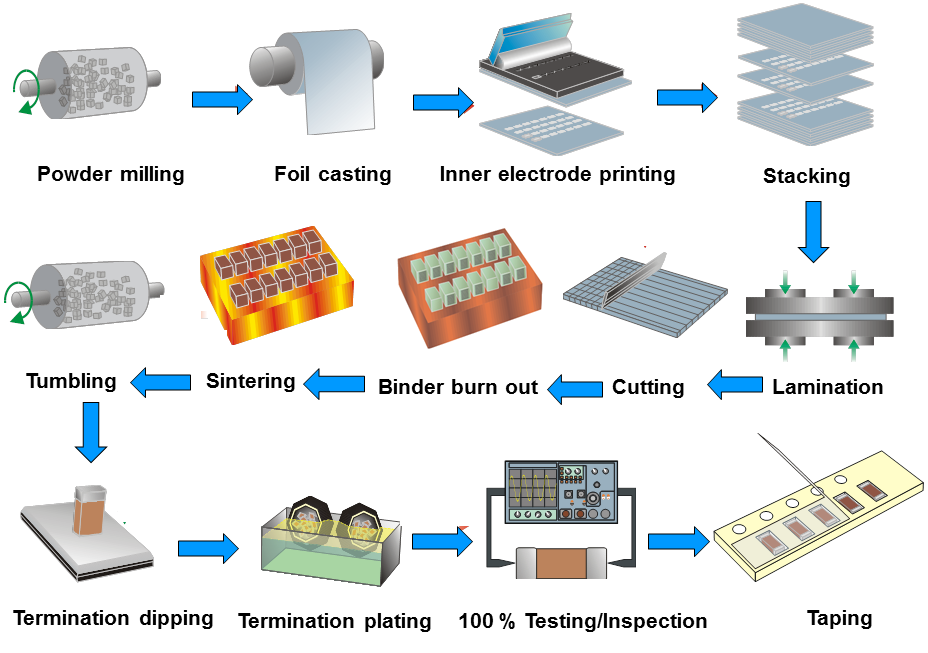

Electronic Components

The sintering process in the manufacture of Multi-Layer Ceramic Capacitors (MLCCs) initiates with porous electrode structures, but through meticulous examination using synchrotron X-ray nano-computed tomography, a captivating transformation is unveiled. Led by Gaku Okuma and a dedicated team of researchers, this investigation unravels the intricate journey of microstructural evolution. As sintering progresses, the porous nature of the electrodes gives way to remarkable changes. Ceramic powders, integral to MLCC electrode composition, densify, and porous features gradually vanish. Concurrently, the boundaries between ceramic particles and electrode materials blur as the structure achieves greater homogeneity. Sinter necks, critical for electrical conductivity, make their appearance and are meticulously tracked to understand their formation. Moreover, the study dissects the impact of sintering parameters such as temperature and time on the final microstructure. This research not only enriches our comprehension of sintering dynamics but also underlines its significance in advancing MLCC manufacturing for more dependable and efficient electronic devices.

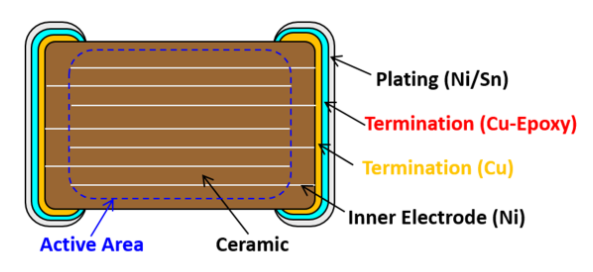

Inside Belt Furnace

Challenges include differences in material properties, particularly in the thermal expansion coefficients of the dielectric and electrode layers, which can lead to delamination during the sintering process. The choice of materials for electrodes and the heating rate during sintering have a significant impact on the overall quality of MLCCs.

It seems like there are three key objectives have emerged:

1. Controlled Heating Rates: Modern MLCC manufacturing requires rapid heating rates to accommodate thinner and more intricate designs. Advanced furnace and kiln systems are capable of achieving these high rates, allowing for improved control over the sintering process.

2. Temperature Uniformity: Maintaining precise temperature uniformity within the furnace is essential for consistent and reliable MLCC production. Innovative furnace designs incorporate multiple controlling circuits to ensure temperature uniformity, reducing temperature variations to only a few degrees or less.

3. Atmosphere Control: Controlling the atmosphere inside the furnace is a critical aspect of MLCC manufacturing. Modern furnaces have introduced advanced features to create and maintain precise atmospheres, including complex gas mixtures of hydrogen, nitrogen, and steam. The removal of organic binders from MLCCs at low temperatures, without oxidizing the metallic electrodes, necessitates sophisticated control systems and sealed furnace designs.

Inside Belt Furnace

In conclusion, as electronic devices continue to become more compact and high-performance, the demand for MLCCs that are thinner, more efficient, and capable of higher capacity is on the rise. To meet these evolving requirements, furnace and kiln technologies have played a pivotal role in ensuring the quality and reliability of MLCC production.

Contact us for your next MLCC furnace requirements!
