Dye-Sensitized Solar Cells (DSSCs) stand at the forefront of solar cell technologies, and the key to their efficiency lies in the intricate process of sintering. Sintering, a two-stage procedure involving Titanium Dioxide (TiO2) and Transparent Conductive Oxide (TCO), plays a pivotal role in DSSC performance. Understanding the nuanced factors of this process, including temperature, time, and material choices, is crucial for enhancing the efficiency of these innovative solar cells. In this article, we delve deep into the sintering process and its impact on DSSCs.

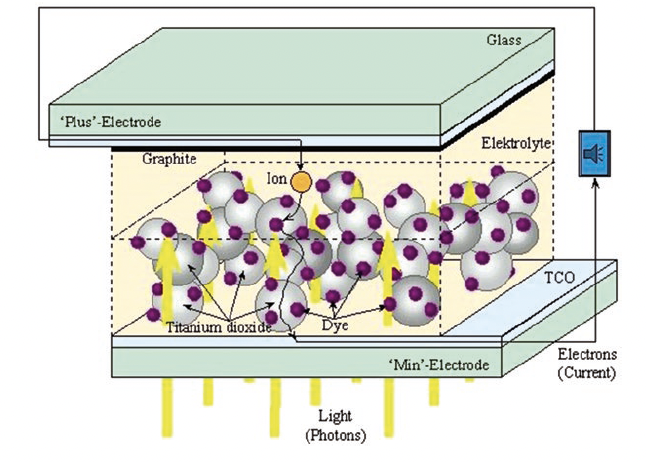

Dye-Sensitized Solar Cells have a unique structure with three primary components (Figure 1). The first, a substrate, forms the negative terminal and consists of a transparent glass layer coated with TCO. This design allows sunlight to penetrate while conducting electricity. In the heart of the cell, a layer of dye sensitizers binds to nanostructured Titanium Dioxide (TiO2), which connects to the negative terminal for light collection. All components are immersed in an electrolyte solution for charge transport. The positive terminal at the top is equipped with either a platinum or carbon (graphite) coating to facilitate electron transfer. By securely joining the outer layers, leakage from the central portion is effectively prevented.
DSSCs operate by allowing sunlight to pass through the transparent conductive oxide (TCO) layer, which excites electrons within the dye molecules. These energized electrons are then injected into the TiO2 particles, acting as semiconductors, which transport the electrons toward the negative terminal (TCO layer). Here, all the electrons are collected and directed into an external circuit, thus generating electricity. Subsequently, these electrons return to the solar cell through the positive terminal, reconnecting with the electrolyte to repeat the process.
Material selection stands as a critical factor in DSSCs. The negative terminal typically boasts a thin layer of fluorine-doped tin oxide, which permits sunlight penetration while conducting electricity. As for the semiconductor layer, one can opt for zinc oxide (ZnO) or titanium dioxide (TiO2), with the latter being a favored choice due to its resistance to continuous electron transfer. However, TiO2 is less responsive to visible light, necessitating the use of dye sensitizers to harness a significant portion of sunlight. Zinc oxide, despite its higher electron mobility, has limitations with organic dyes, making it less favorable until alternative sensitizers are found.
Dye sensitizers are versatile, with natural dyes derived from resources such as blueberries and raspberries and synthetic dyes designed for optimal light collection. For the positive terminal, the options are either platinum, known for its efficiency, or carbon (graphite), a cost-effective alternative suitable for educational or testing purposes.
Dye-Sensitized Solar Cells offer a multitude of benefits compared to other solar technologies. Their high price/performance ratio makes them cost-effective to produce. Their lightweight and mechanically robust design allows for flexibility in shape and configuration to meet specific design requirements. DSSCs excel in maintaining their efficiency even at high temperatures, with an efficiency range of 10% to 11%, surpassing other thin-film solar panels with an average efficiency of about 5% to 13%. Furthermore, DSSCs perform efficiently in low-light conditions, making them a practical choice for cloudy or low-light environments.
Efficiency in DSSCs hinges on the sintering process of the TiO2 layer. This two-stage procedure involves sintering TiO2 nanoparticles within a temperature range of 300-500 °C, with the TCO glass plate acting as the sintering platform. This critical step removes ambient moisture within the TiO2 layer, ensuring strong electrical contact between the TiO2 nanoparticles and adhesion to the TCO glass plate. Sintering at temperatures around 450-500 °C ensures optimal nanoparticle contact and substrate adhesion. Caution is advised against sintering at excessively high temperatures, beyond 600-650 °C, as it can destabilize DSSCs.
Extensive research has examined the impact of sintering temperature on DSSC efficiency. The ideal sintering temperature typically falls in the range of 450-500 °C. This temperature range enhances nanoparticle contact and substrate adhesion, with larger TiO2 nanoparticles promoting improved dye absorption and electron generation. However, very high sintering temperatures should be avoided, as DSSCs have an upper temperature limit, beyond which their efficiency diminishes significantly.
In conclusion, the selection of an optimal sintering temperature between 400-500 °C is paramount for achieving peak efficiency in DSSCs. The careful balance of materials and process temperatures propels these innovative solar cells toward a brighter and more sustainable future. A special version of Torrey Hills Technologies' HSK is made for DSSC application. Contact us for more details.
